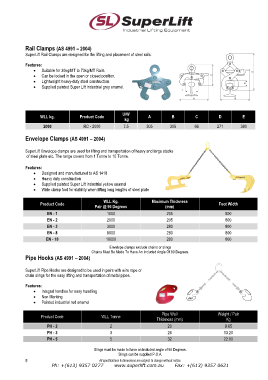

Page 8 - SuperLift-DataBook-Materials-Handling-MHEDN9

Rail Clamps (AS 4991 – 2004) SuperLift Rail Clamps are designed for the lifting and placement of steel rails. Features:  Suitable for 30kg/MT to 73kg/MT Rails.  Can be locked in the open or closed position.  Lightweight heavy-duty steel construction.  Supplied painted Super Lift industrial grey enamel. U/W WLL kg. Product Code A B C D E kg 2000 RC - 2000 7.5 305 305 66 271 380 Envelope Clamps (AS 4991 – 2004) SuperLift Envelope clamps are used for lifting and transportation of heavy and large stacks of steel plate etc. The range covers from 1 Tonne to 10 Tonne. Features:  Designed and manufactured to AS 1418  Heavy duty construction  Supplied painted Super Lift industrial yellow enamel  Wide clamp foot for stability when lifting long lengths of steel plate WLL Kg. Maximum Thickness Product Code Foot Width Pair @ 90 Degrees (mm) EN - 1 1000 205 800 EN - 2 2000 205 800 EN - 3 3000 280 800 EN - 8 8000 280 800 EN - 10 10000 280 800 Envelope clamps exclude chains or slings Chains Must Be Made To Have An Included Angle Of 90 Degrees. Pipe Hooks (AS 4991 – 2004) SuperLift Pipe Hooks are designed to be used in pairs with wire rope or chain slings for the easy lifting and transportation of metal pipes. Features:  Integral handles for easy handling  Non Marking  Painted industrial red enamel Pipe Wall Weight / Pair Product Code WLL Tonne Thickness (mm) Kg PH - 2 2 20 9.65 PH - 3 3 26 13.20 PH - 5 5 32 22.00 Slings must be made to have an included angle of 90 Degrees. Slings can be supplied P.O.A. 5 All specifications & dimensions are subject to change without notice. Ph: +(613) 9357 0277 www.superlift.com.au Fax: +(613) 9357 0621
