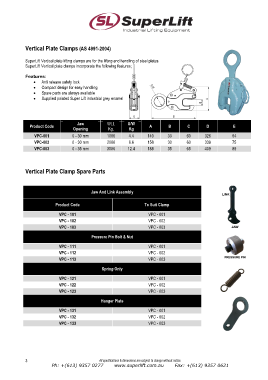

Page 6 - SuperLift-DataBook-Materials-Handling-MHEDN9

Vertical Plate Clamps (AS 4991-2004) SuperLift Vertical plate lifting clamps are for the lifting and handling of steel plates. SuperLift Vertical plate clamps incorporate the following features; Features:  Anti release safety lock  Compact design for easy handling  Spare parts are always available  Supplied painted Super Lift industrial grey enamel Jaw WLL U/W Product Code A B C D E Opening Kg. Kg VPC-001 0 - 30 mm 1000 4.4 140 30 60 326 64 VPC-002 0 - 30 mm 2000 6.6 158 30 60 339 75 VPC-003 0 - 35 mm 3000 12.4 188 35 65 409 89 Vertical Plate Clamp Spare Parts Jaw And Link Assembly Product Code To Suit Clamp VPC - 101 VPC - 001 VPC - 102 VPC - 002 VPC - 103 VPC - 003 Pressure Pin Bolt & Nut VPC - 111 VPC - 001 VPC - 112 VPC - 002 VPC - 113 VPC - 003 Spring Only VPC - 121 VPC - 001 VPC - 122 VPC - 002 VPC - 123 VPC - 003 Hanger Plate VPC - 131 VPC - 001 VPC - 132 VPC - 002 VPC - 133 VPC - 003 3 All specifications & dimensions are subject to change without notice. Ph: +(613) 9357 0277 www.superlift.com.au Fax: +(613) 9357 0621
