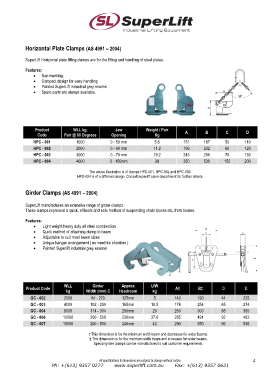

Horizontal Plate Clamps (AS 4991 – 2004) SuperLift Horizontal plate lifting clamps are for the lifting and handling of steel plates. Features:  Non-marking.  Compact design for easy handling.  Painted SuperLift industrial grey enamel.  Spare parts are always available. Product WLL kg. Jaw Weight / Pair Code Pair @ 60 Degrees Opening Kg A B C D HPC - 001 1000 0 - 50 mm 5.6 151 187 50 110 HPC - 002 2000 0 - 60 mm 11.2 199 232 60 120 HPC - 003 3000 0 - 70 mm 19.2 243 296 70 130 HPC - 004 4000 0 - 150mm 39 350 530 150 200 The above illustration is of clamps HPC-001, HPC-002 and HPC-003. HPC-004 is of a different design. Consult superlift sales department for further details. Girder Clamps (AS 4991 – 2004) SuperLift manufactures an extensive range of girder clamps. These clamps represent a quick, efficient and safe method of suspending chain blocks etc, from beams. Features:  Light weight heavy duty all steel construction  Quick method of attaching clamp to beam  Adjustable to suit most beam sizes  Unique hanger arrangement ( no need for shackles )  Painted Superlift industrial grey enamel WLL Girder Approx U/W Product Code A† B‡ D E kg Width (mm) C Headroom kg GC - 002 2000 64 - 203 125mm 5 140 190 44 225 GC - 003 4000 102 - 230 165mm 10.5 178 254 65 274 GC - 004 8000 114 - 304 250mm 20 250 300 88 365 GC - 006 10000 200 - 500 230mm 37.6 285 491 92 462 GC - 007 15000 200 - 500 240mm 42 290 550 96 535 † This dimension is for the minimum width beam and decreases for wider beams. ‡ This dimension is for the minimum width beam and increases for wider beams. Special girder clamps can be manufactured to suit customer requirements. All specifications & dimensions are subject to change without notice. 4 Ph: +(613) 9357 0277 www.superlift.com.au Fax: +(613) 9357 0621
