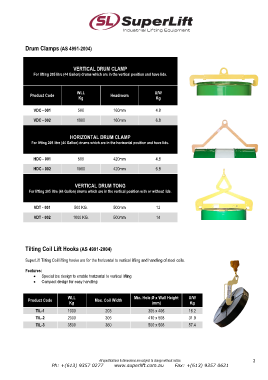

Page 5 - SuperLift-DataBook-Materials-Handling-MHEDN9

Drum Clamps (AS 4991-2004) VERTICAL DRUM CLAMP For lifting 205 litre (44 Gallon) drums which are in the vertical position and have lids. WLL U/W Product Code Headroom Kg Kg VDC - 001 500 160mm 4.8 VDC - 002 1000 160mm 6.8 HORIZONTAL DRUM CLAMP For lifting 205 litre (44 Gallon) drums which are in the horizontal position and have lids. HDC - 001 500 420mm 4.8 HDC - 002 1000 420mm 6.8 VERTICAL DRUM TONG For lifting 205 litre (44 Gallon) drums which are in the vertical position with or without lids. VDT - 001 500 KG. 500mm 12 VDT - 002 1000 KG. 500mm 14 Tilting Coil Lift Hooks (AS 4991-2004) SuperLift Tilting Coil lifting hooks are for the horizontal to vertical lifting and handling of steel coils. Features:  Special toe design to enable horizontal to vertical lifting  Compact design for easy handling WLL Min. Hole Ø x Wall Height U/W Product Code Max. Coil Width Kg (mm) Kg TIL-1 1000 203 305 x 406 16.2 TIL-2 2000 305 410 x 508 31.9 TIL-3 3500 360 500 x 508 57.4 All specifications & dimensions are subject to change without notice. 2 Ph: +(613) 9357 0277 www.superlift.com.au Fax: +(613) 9357 0621
