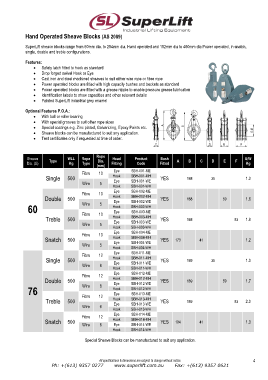

Hand Operated Sheave Blocks (AS 2089) SuperLift sheave blocks range from 60mm dia. to 254mm dia. Hand operated and 152mm dia to 450mm dia Power operated, in snatch, single, double and treble configurations. Features: Safety latch fitted to hook as standard Drop forged swivel Hook or Eye Cast iron and steel machined sheaves to suit either wire rope or fibre rope Power operated blocks are fitted with high capacity bushes and beckets as standard Power operated blocks are fitted with a grease nipple to enable pressure grease lubrication Identification labels to show capacities and other relevant details Painted SuperLift industrial grey enamel Optional Features P.O.A.: With ball or roller bearing With special grooves to suit other rope sizes Special coatings e.g. Zinc plated, Galvanizing, Epoxy Paints etc. Sheave blocks can be manufactured to suit any application. Test certificates only if requested at time of order. Rope Sheave Type WLL Rope Dia. Head Product Bush A B C D E F U/W Dia. (G) Kg Type Fitting Code Fitted Kg (mm) Eye SBH-001-ME Fibre 10 Single 500 Hook SBH-001-MH YES 168 35 1.0 Wire 5 Eye SBH-001-WE Hook SBH-001-WH Eye SBH-002-ME Fibre 10 Double 500 Hook SBH-002-MH YES 168 59 1.6 Eye SBH-002-WE 60 Wire 5 Hook SBH-002-WH Fibre 10 Eye SBH-003-ME Treble 500 Hook SBH-003-MH YES 168 83 1.8 Eye SBH-003-WE Wire 5 Hook SBH-003-WH Eye SBH-004-ME Fibre 10 Snatch 500 Hook SBH-004-MH YES 173 41 1.2 Wire 5 Eye SBH-004-WE Hook SBH-004-WH Eye SBH-011-ME Fibre 12 Single 500 Hook SBH-011-MH YES 189 35 1.0 Wire 6 Eye SBH-011-WE Hook SBH-011-WH Eye SBH-012-ME Fibre 12 Double 500 Hook SBH-012-MH YES 189 59 1.7 SBH-012-WE Eye 76 Wire 6 Hook SBH-012-WH SBH-013-ME Eye Treble 500 Fibre 12 Hook SBH-013-MH YES 189 83 2.0 Wire 6 Eye SBH-013-WE Hook SBH-013-WH Eye SBH-014-ME Fibre 12 Snatch 500 Wire 6 Hook SBH-014-MH YES 194 41 1.3 SBH-014-WE Eye Hook SBH-014-WH Special Sheave Blocks can be manufactured to suit any application. All specifications & dimensions are subject to change without notice. 4 Ph: +(613) 9357 0277 www.superlift.com.au Fax: +(613) 9357 0621
